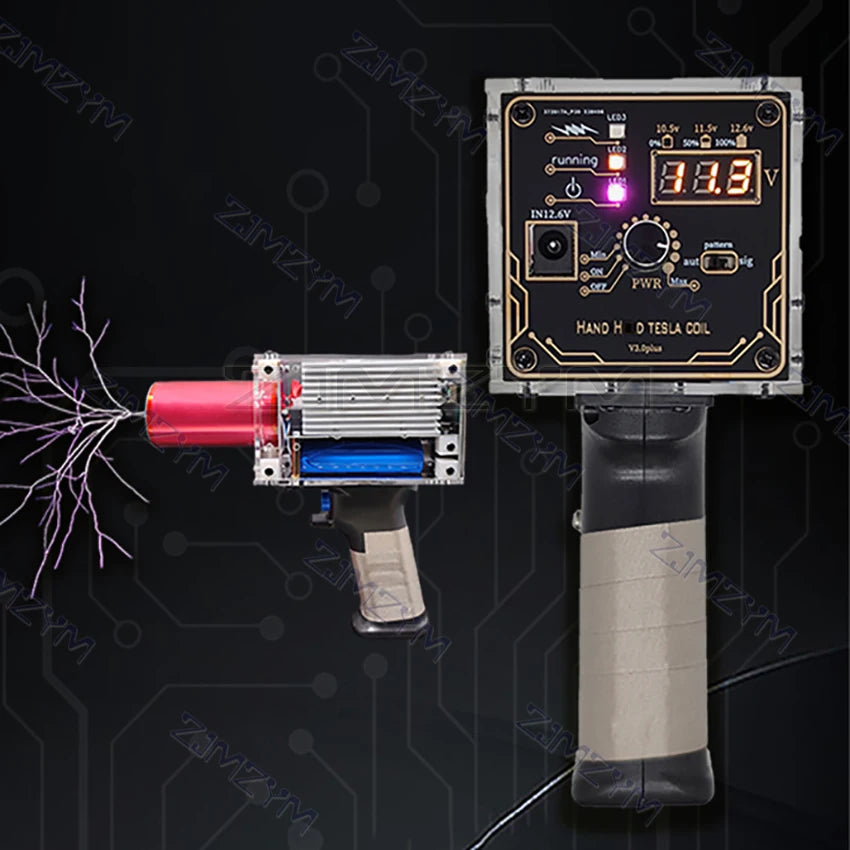

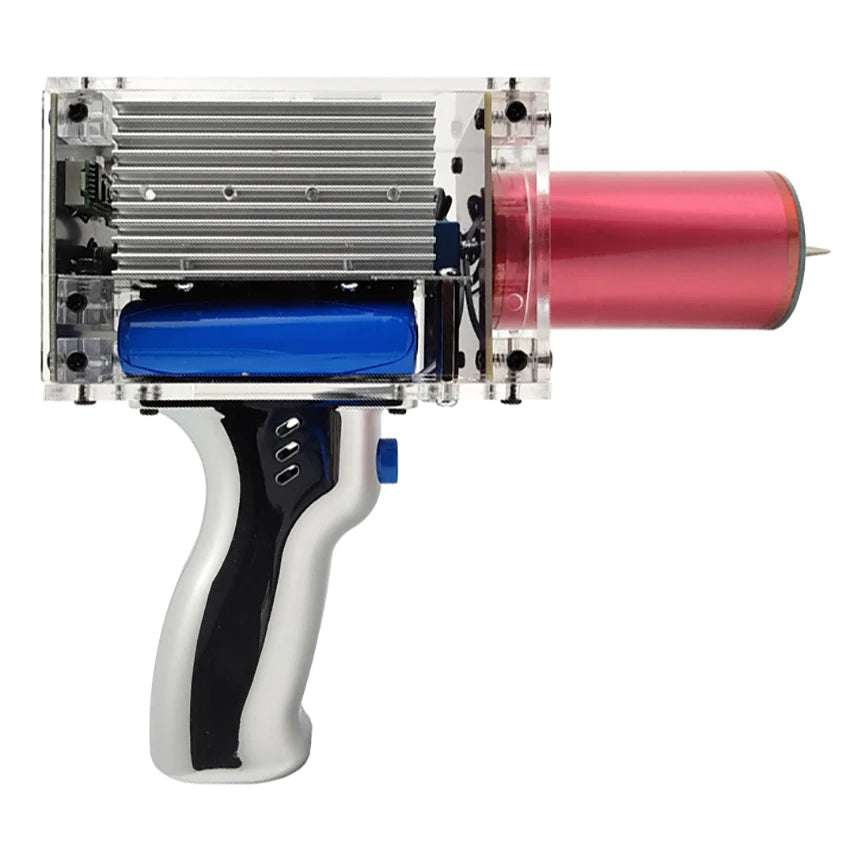

Handheld High Voltage Lightning Generator

SPECIFICATIONS

Product Overview

• Product Name: Handheld High Voltage Lightning Generator
• Model: Third Generation Plus
• Product Number: FC4808
• Type: Handheld Tesla Coil
• Brand: None
• Origin: Mainland China
• DIY Supplies: Electrical (electronic device)

Electrical & Performance

• Supply Voltage: 10.5–12.6V
• Supply Current: 0.5–6A
• Power Output: 2W–80W
• Resonant Frequency: 1.2–1.4 MHz
• Discharge Frequency: Automatic mode up to ~7 Hz
• Arc Length: 8–10 cm (linearly adjustable)

Modes

• Automatic trigger mode
• Single trigger mode

Battery Options

• 2200mAh (A1 version)
  • Approx. 7000 discharge cycles
• 2900mAh (A2 version)
  • Approx. 10,000 discharge cycles

Physical Details

• Coil Size: Φ40 × 92 mm
• Shell Material: Transparent acrylic
• Gross Weight: 0.9 kg
• Packing Size: Approximately 22 × 21 × 11 cm

Charging

• Charger Input: 100–240V (universal AC input)

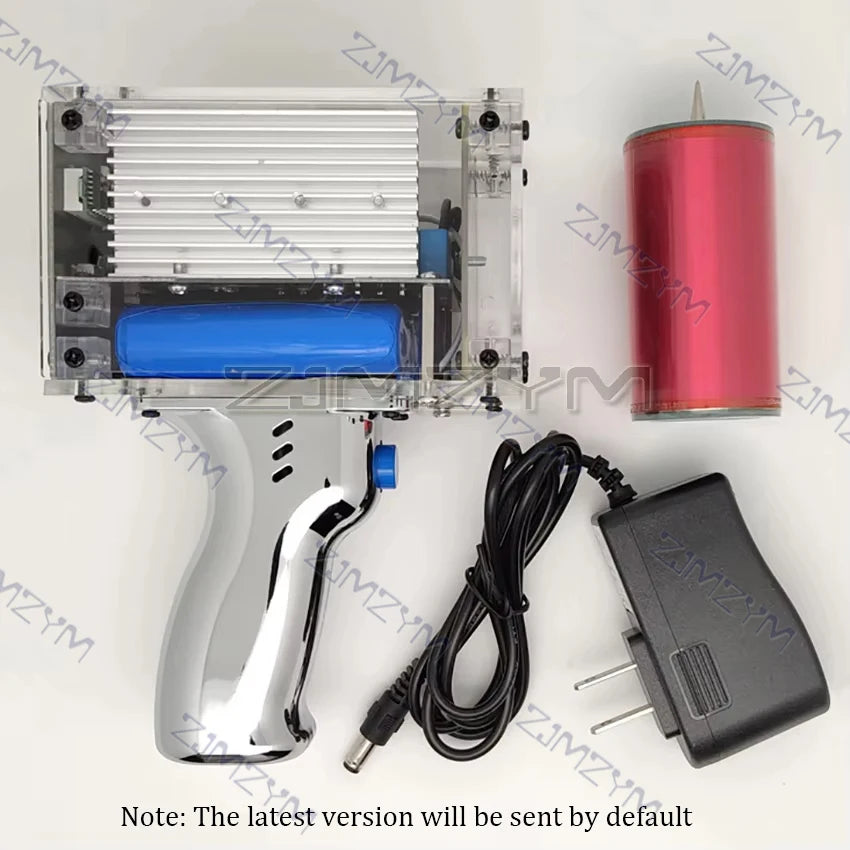

Package Includes

• 1 × Handheld Tesla Coil
• 1 × Power Charger
• 1 × English User Manual

Usage Notes

• In automatic triggering mode at maximum arc output, continuous operation should not exceed 5 minutes to prevent overheating or damage.
• Appearance may vary slightly due to product upgrades; the latest version will be shipped by default.

Customs & Shipping Notice

• When the parcel arrives at customs, customers are responsible for paying any applicable taxes and collecting the parcel. The seller is not responsible for customs duties or import taxes.
• If the delivery location is considered remote, an additional fee of USD $38 may apply.
